Size

Part Number

* Click on technical drawing to enlarge

14. National Track Cover

National Track Cover Trim

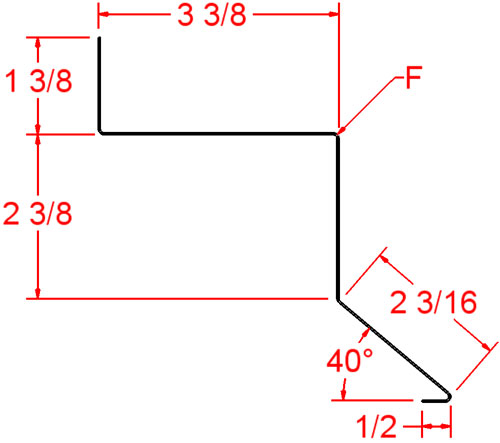

National Track Cover Trim Profile

FS29TNTC100

10’6"

15. One Piece Fascia Soffit

One Piece Fascia Soffit Trim
One Piece Fascia Soffit Trim Profile

FS29T3FS100

FS29T5FS100

FS29T7FS100

3.5"x10'

5.5"x10'

7.5"x10'

16. Overhead Door Trim

Overhead Door Trim

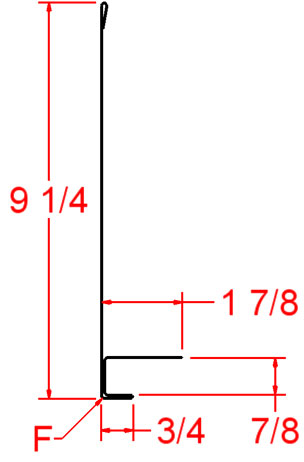

Overhead Door Trim Profile

FS29TODT103

FS29TODT123

FS29TODT143

FS29TODT163

FS29TODT183

10'3"

17. Rake & Corner Trim

Rake & Corner Trim

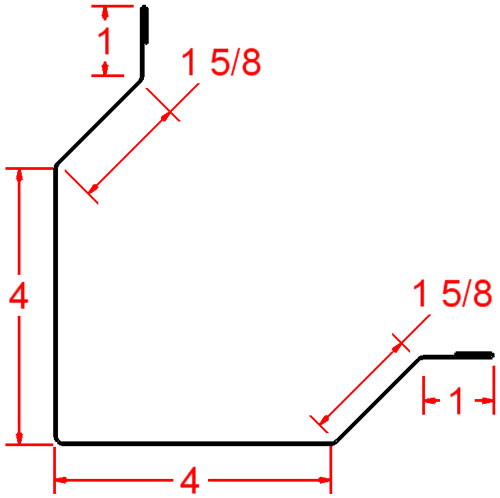

Rake & Corner Trim Profile

FS29TOSC106

FS29TOSC126

FS29TOSC146

FS29TOSC166

FS29TOSC186

FS29TOSC206

FS29TOSC226

FS29TOSC246

10'6"

12'6"

14'6"

16'6"

18'6"

20'6"

22'6"

24'6"

18. Residential Eave

Residential Eave Trim

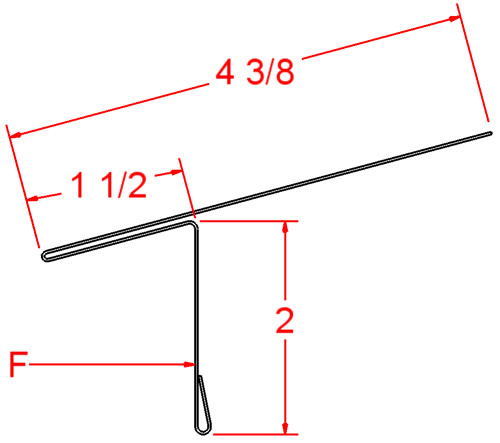

Residential Eave Trim Profile

FS29TRSE100
* Please specify
pitch when ordering

10'

19. Residential Rake

Residential Rake Trim
Residential Rake Trim Profile

FS29TRRK106

FS29TRRK126

FS29TRRK146

FS29TRRK166

FS29TRRK186

FS29TRRK206

10'6"

12'6"

14'6"

16'6"

18'6"

20'6"

20. Reverse Endwall Gambrel

Reverse Endwall Gambrel Trim

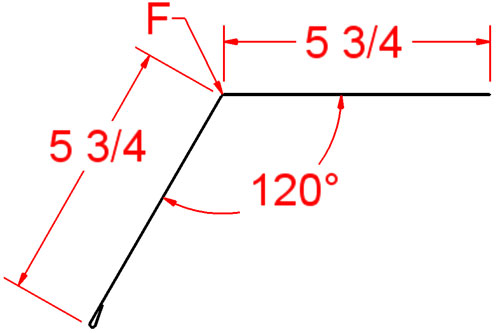

Reverse Endwall Gambrel Trim Profile

FS29TREW106

10'6'

21. Transition Flashing

Transition Flashing Trim
Transition Flashing Trim Profile

FS29TFLT106
* Please specify
pitches when ordering

10'6"

22. Universal Endwall Flashing

Universal Endwall Flashing Trim

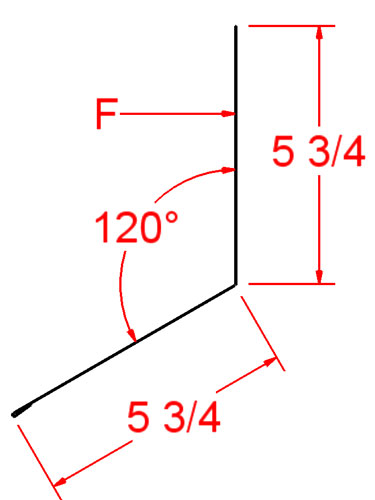

Universal Endwall Flashing Trim Profile

FS29TEWF106

10’6"

23. Universal Ridgecap

Universal Ridgecap Trim
Universal Ridgecap Trim Profile

FS29TRCP106

10’6"

24. Universal Sidewall

Universal Sidewall Trim

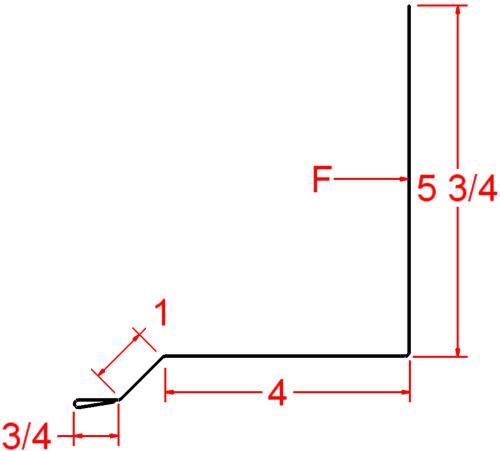

Univeral Sidewall Trim Profile

FS29TSWF106

10’6"

25. Valley Flashing

Valley Flashing Trim
Valley Flashing Trim Profile

FS29T95V100

9-1/2" Legs

FS29T20V100

20 " Legs

10’

10’

26. Notched Endwall Flashing

Notched Endwall Flashing Trim
Notched Endwall Flashing Trim Profile

FS29TNEW041

41"
