Panel Features

Dura Star Trims

Page 1 | 2

Size

Part Number

* Click on technical drawing to enlarge

11. Masonry Wainscoat

Masonry Wainscoat Trim
Masonry Wainscoat Trim Profile

DS24TMWC103

10’3"

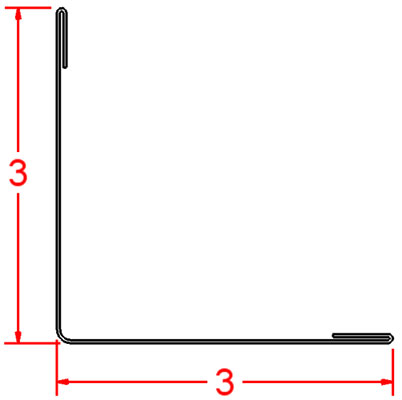

12. Outside Angle

Outside Angle Trim
Outside Angle Trim Profile

DS24TOSA103

10'3"

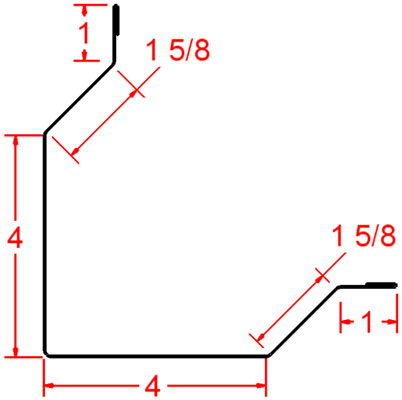

13. Outside Corner

Outside Corner Trim
Outside Corner Trim Profile

DS24TOSC106

DS24TOSC126

DS24TOSC146

DS24TOSC166

10'6"

12'6"

14'6"

16'6"

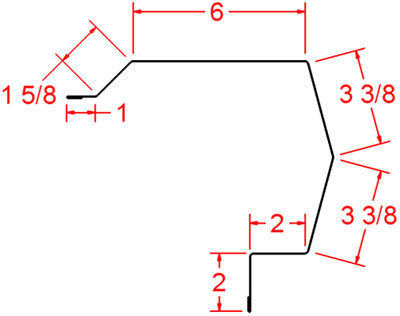

14. Sculptured Rake Trim

Sculptured Rake Trim
Sculptured Rake Trim Trim Profile

DS24TRKE106

DS24TRKE126

DS24TRKE146

DS24TRKE166

10'6"

12'6"

14'6"

16'6"

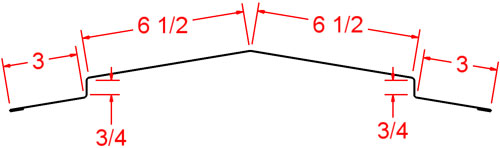

15. Ridgecap

Ridgecap Trim
Ridgecap Trim Profile

DS24TRCB106

10'6"

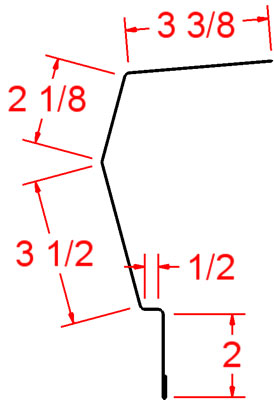

16. Sculptured Eave Trim

Sculptured Eave Trim
Sculptured Eave Trim Profile

DS24TSET106

DS24TSET126

DS24TSET146

DS24TSET166

10'6"

12'6"

14'6"

16'6"

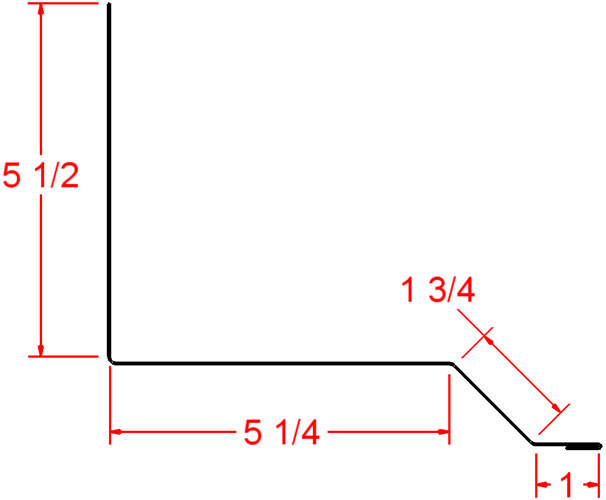

17. Sidewall Flashing

Sidewall Flashing Trim
Sidewall Flashing Trim Profile

DS24TSWL103

10’3”

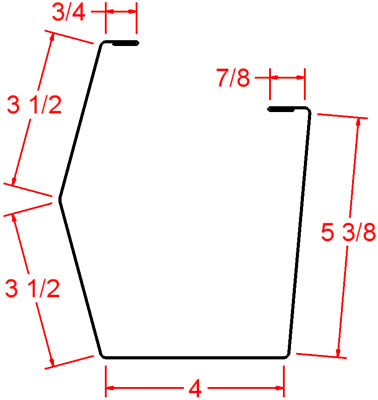

18. Standard Gutter

Standard Gutter Trim
Standard Gutter Trim Profile

DS24TGUT103

DS24TGUT140

DS24TGUT200

DS24TGUT206



10'

14'

20'

26'

19. Z-Flashing

Z-Flashing Trim
Z-Flashing Profile

DS24TZEE103

10’3"
